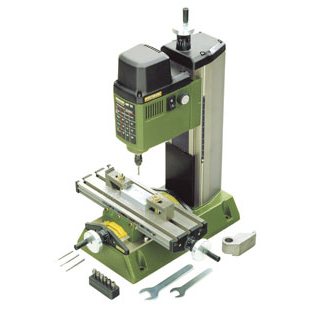

• For work with extremely small cutters.
• Cast iron base with aluminium column and compound table
• All axes play-free with adjustable gibs.
• 240V motor is extremely stable even at high operating
speeds. This stability facilitates the use of the finest
cutters.
• Triple slit, hardened steel collets, 1.0 – 1.5 – 2.0 – 2.35 –
3.0 – 3.2mm.
• Three 12 x 6 x 6mm T-slots.
• Adjustable ruler scale. Handwheels are zero adjustable
1 rev. = 1.0mm, 1 div. = 0.05mm.
• Spindle speeds 5,000 – 20,000rpm.
• Table 200 x 70mm with X–Y travel of 134mm and 46mm
respectively, vertical travel 80mm.
• Footprint 130 x 225mm height 340mm. Includes clamping
blocks but not workpiece.
